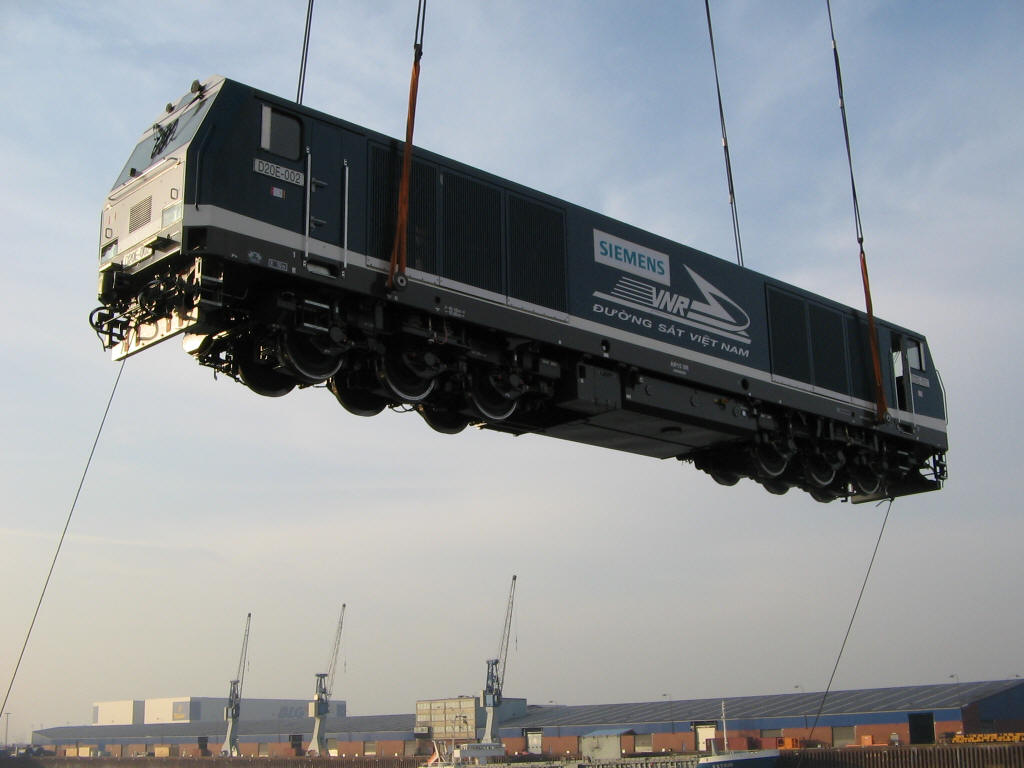

一只漂亮的locomotive!

车辆段附近住

西门子

tgvboy

给越南老弟的

行星齿轮

目前在德国还没见过

东风46282

和DJ4有几分相似

车辆段附近住

实际上是中看不中用的玩意！


Power transmission           Diesel-electric; AC-AC
          Diesel engine         MTU 12V4000R41
          Speed range         600 rpm to 1,800 rpm


Maximum shaft output
        1500 kW (at UIC conditions)


Maximum speed
        120 km/h
135 km/h (locomotive running alone)


Maximum starting tractive effort
        260 kN


Max. continuous effort
        234 kN


Corresponding max. continuous speed
        0…18,77 km/h (15 km/h included)


Maximum braking effort
        150 kN


Multiple traction
        Up to three locomotives of same type


Ambient temperature
        +10°C to + 38°C (full performance)
+ 5°C to + 55°C (with performance derating)
          Track gauge         1000 mm
          Length over couplers         19,180 mm
          Max. width carbody         2,688 mm
          Max. width with mirror and door handles         2820 mm including door handles
2950 mm including mirrors (adjusted adequately)
          Max. height         3,945 mm at exhaust opening
          Bogies         2
          Distance between bogie centers         approx. 10,300 mm
          Wheel diameter         1016 mm / 956 mm (new / worn)
          Min. ground clearance with worn wheels         At tank (4000 l): approx. 331 mm (leveled track)
At battery container: 275 mm (leveled track)
At derailment protection bar: 100 mm
At traction motor: 100 mm
At traction rod: 112 mm
          Loading gauge         Regulation of Teschnical Exploitation of the Railway, PHU BAN II, page 225
          Minimum curve radius         97 m on mainline / 70 m in the workshop area
          Minimum vertical radius, convex         >= 250 m
          Minimum vertical radius, concave         >= 300 m
          General layout-drawing         “Locomotive cpl.” Drawing # A00.31-7452285
          Axle load (full supplies)         max. 13,5 t
          Tolerance for service weight and axle load         according to IEC 61133

scott_sui

好看，好用起码也占一样，别既不好看又不好用就行

kblu

功率小，但是对于人少国小的国家也用不着大功率

tkpnsip

AR20

T63

出口产品

建设8061

没大用处。
